Produtos / Sistemas de Instalação / Abraçadeiras plásticas / AB-IN / AB-IN
AB-IN
AB-IN

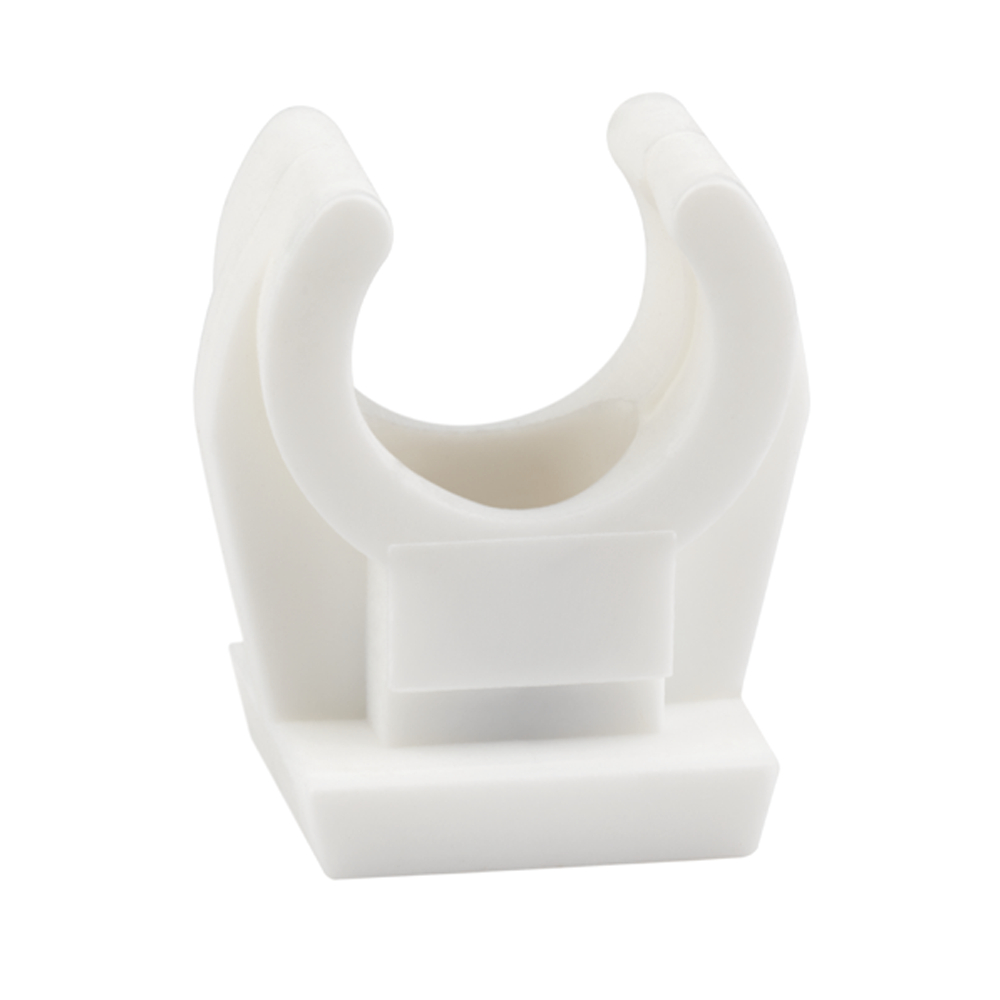

AB-IN Abraçadeira de grampo

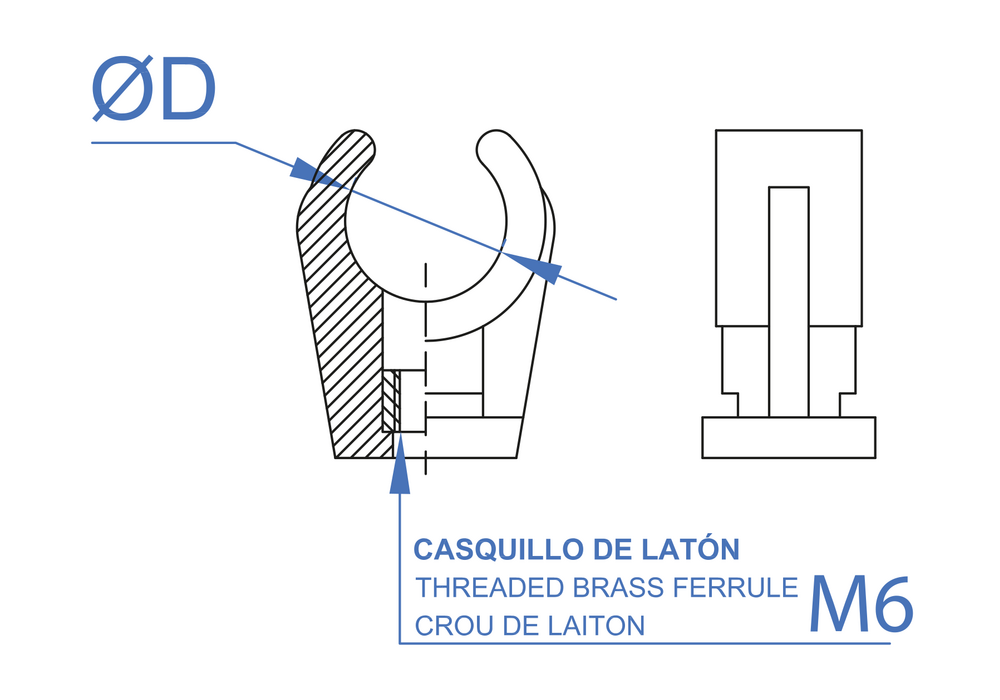

Braçadeira de grampo para fixação por pressão de cabos e tubos leves de PVC, cobre ou aço. Inclui um casquilho M6 em latão. Pode ser instalada numa calha, por meio de uma ficha e parafuso ou com um parafuso e rosca métrica. É fabricada em polipropileno e não contém halogéneos.
CódigoHomologaçãoMedidaØ D [mm]CARGA MÁXIMAUni. vendas mín.Uds CaixaUds. MasterboxEANInfo. Técnica
ABIN0121212001001.2008423533235701
  • d1 - Ø (mm)12
ABIN01414-1514-15001006008423533235800
  • d1 - Ø (mm)14-15
ABIN01616-1816-18001006008423533235909
  • d1 - Ø (mm)16-18
ABIN02020-2220-22001004008423533236005
  • d1 - Ø (mm)20-22
ABIN025252500503008423533845764
  • d1 - Ø (mm)25
ABIN028282800503008423533236104
  • d1 - Ø (mm)28
ABIN032323200251508423533845771
  • d1 - Ø (mm)32
ABIN035353500253008423533812001
  • d1 - Ø (mm)35
  • Grampo
  • Suporte de grampo
  • Grampo de tubo
  • Unidades de ar condicionado
  • Grampo de caleira
  • Edifício de betão em construção
icon book
Fichas Técnicas
FT_ABRAPL_es_rev9.pdf

produtos relacionados

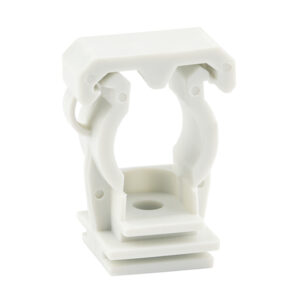

AB-GU

AB-GU

Abraçadeira clip simples com pré-rosca M6. Abraçadeira clip simples, cinzenta, com pré-rosca M6
ES-DR

ES-DR

Haste de rosca dupla. Zincado. TX
AB-TA

AB-TA

Tira-fundo, abraçadeira e grampo. Zincado. Ranhurado
